DB243-5.0 Small loadometer lock-free terminal

0
Views: 64
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15A - 10A
     Wire range
    26~14AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
     Pollution degree
    3 2 2
    Rated voltage
    250V 320V 630V
    Rated current
    24A 24A 24A
     Impulse withstand voltage
    4KV 4KV 4KV
     Conductor cross section
    0.2~2.5mm²



     Material data



    Insulating material
    PA66
    Flammability rating according to UL94  V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    5.0mm/2~30P
     Stripping length
    5~6mm
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
     Pin dimensions
    0.8*0.7mm
     PCB hole diameter
    ∅1.3mm

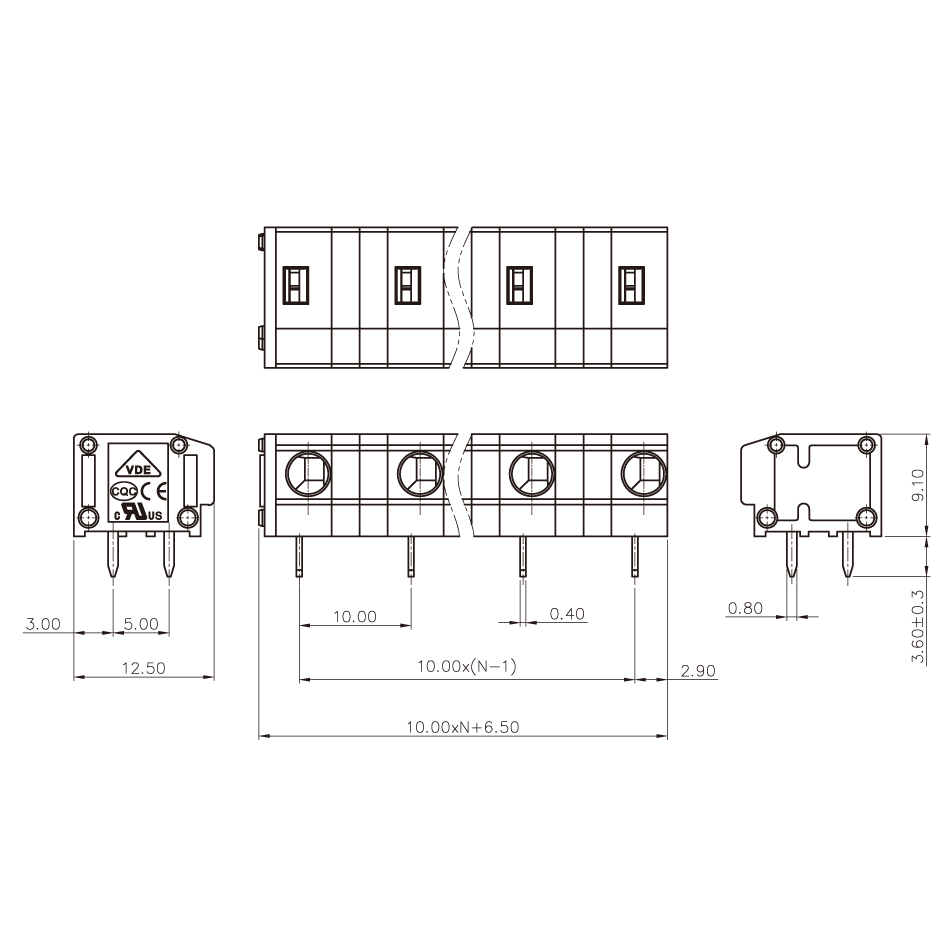

    Dimensional drawing

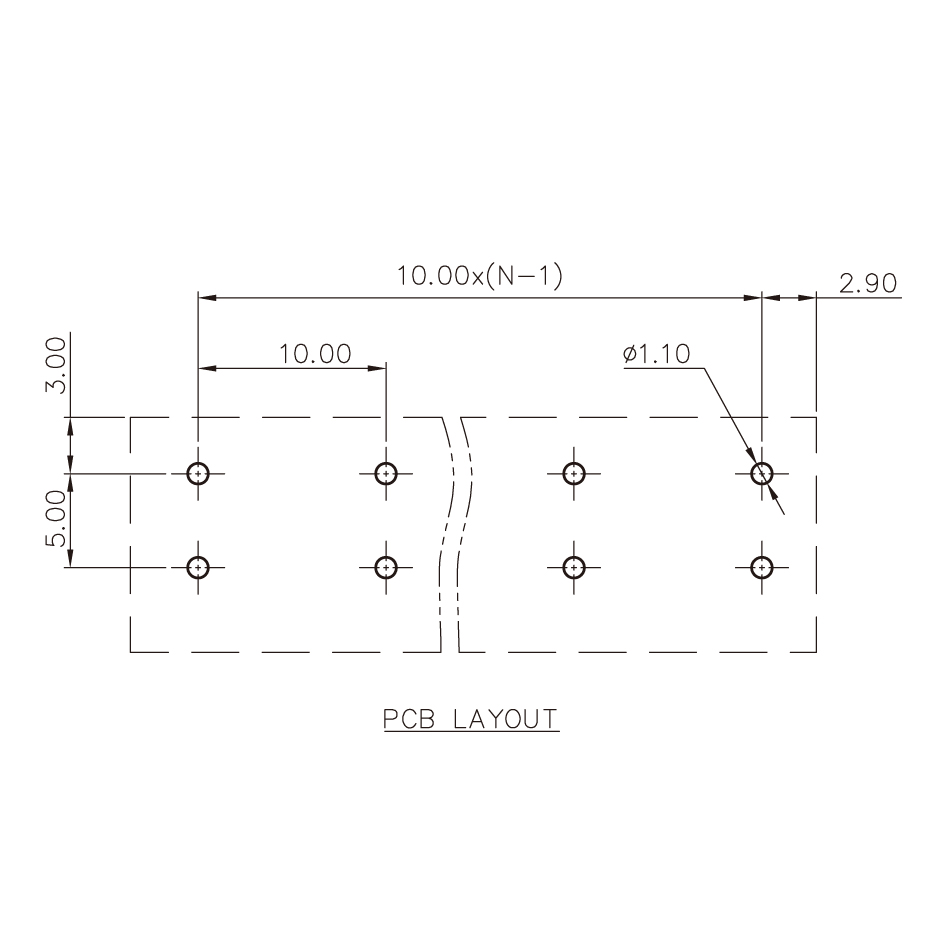

    Dimensions for PCB design
