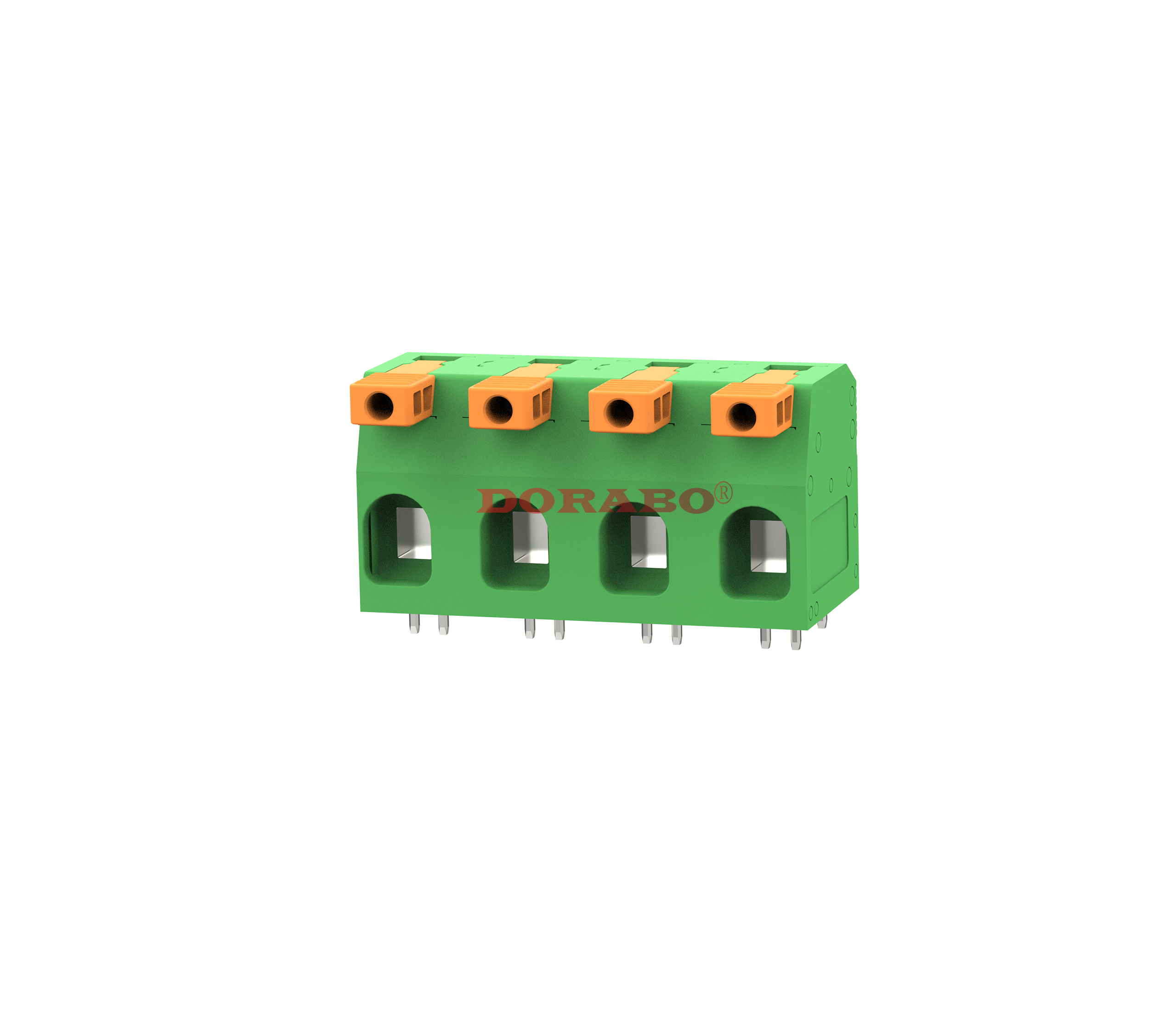

PCB terminal DB240R-15.0

PCB terminal block, Rated current: 51 A, Rated voltage (III/2): 600 V, Rated cross-section: 18mm2, Number of potentials: 2-24, Number of rows: 2, Number of positions per line: 2-24, Product family: DB240R, pitch: 15.0 mm, Connection: Push-in, Mounting: Wave soldering, Wire/PCB connection direction: 0 °, color: Green, Pin arrangement: Straight, Solder pins [P]: 4.5 mm, Number of pins per potential: 2, Packaging type: Carton

Advantage

☑ Time-saving plug-in connection without tools

☑ The set contact force ensures that the contacts remain stable for a long time
☑ The clamping position can be opened with a set screwdriver, allowing the conductors to be easily connected
☑ Double solder pins are used, and the non-mandatory certification 600-V-UL is complied with
☑ Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
0
Views: 58
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Rank Use Group
    B C D
    Rate Voltage [V]
    600 600 -
    Rated Current [A]
    51 51 -
    Wire Range [AWG]
    18-4
    Dielectric Voltage-Withstand
    2.2KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    76 76 76
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-16.0

    material

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    15.0/2-24
    Stripping Length [mm]
    17-18
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    -
    PCB板孔径 PCB Hole Diameter [mm]
    Ø1.9

    Dimensional drawings

    PCB perforation diagram
