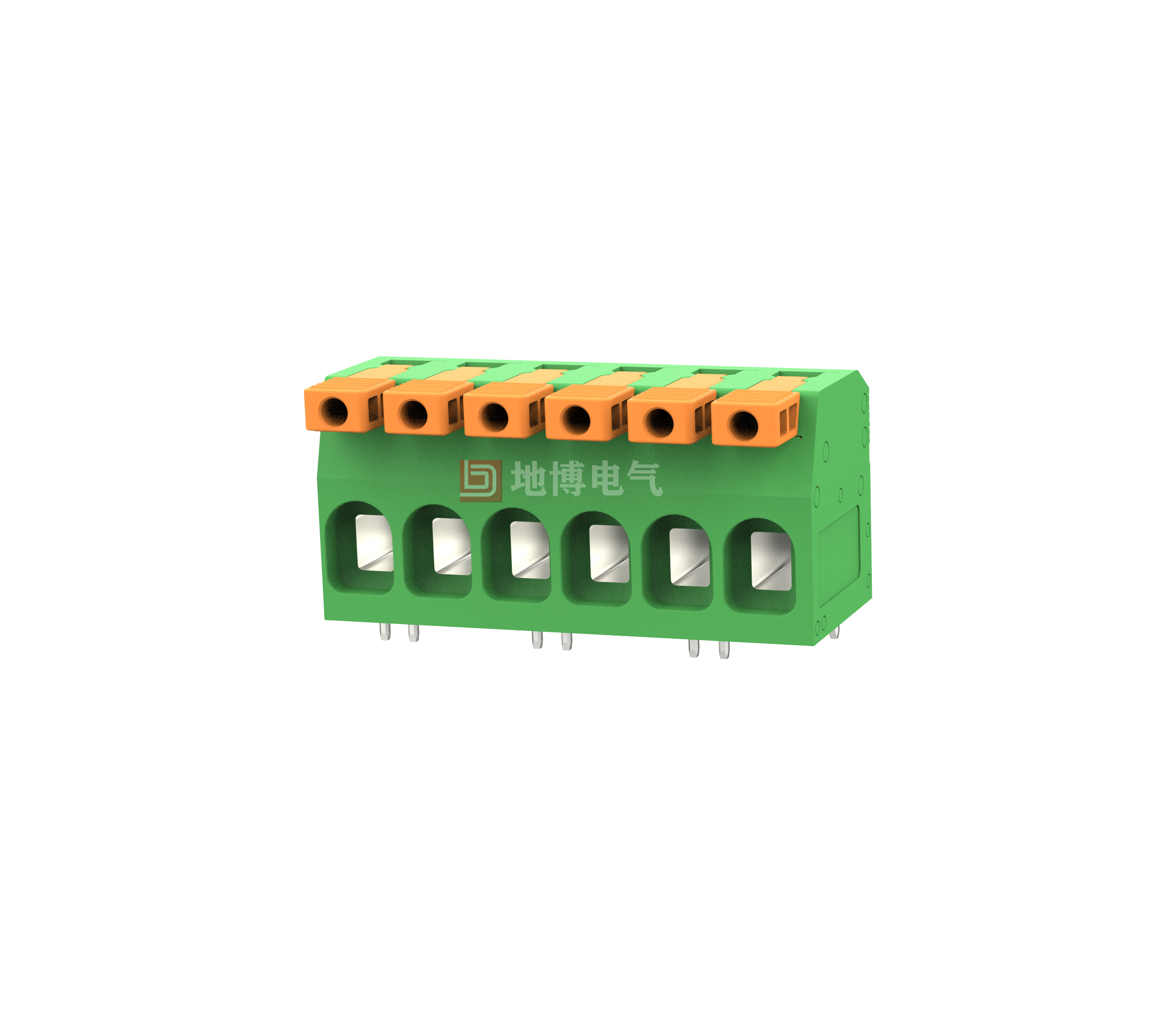

PCB terminal DB240RB-10.0

Fixed connector, Rated current: 51 A, Rated voltage (III/2): 600 V, Rated cross-section: 16 mm2, Number of potentials: 2-18, Number of rows: 1, Number of potentials per row: 2-18, Series: DB240RB, Pin spacing: 10.0 mm, Wiring plan: straight spring connection, Mounting: wave soldering, Connection direction: 0°, Colour: green, Pin arrangement: Z-pin W, Number of soldering pins [P]: 3.6 mm, Number of soldering pins per potential: 2, Packing type: carton packing Green, Pin arrangement: Z-pin W, Soldering pins [P]: 3.6 mm, Number of pins per potential: 2, Packaging type: Carton pack

Advantage

☑Time-saving plug-and-play connection, no tools required
☑Set contact force ensures long term stability of the contacts
☑Convenient connection of wires by opening the clamping position with a set screwdriver
☑Connecting and disconnecting the wires from a single direction makes it possible to integrate them into the front of the device.
☑The use of Z-shaped soldering pins complies with the non-mandatory certification 600-V-UL.
0
Views: 132
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    51 51 5
    Wire Range [AWG]
    18-4
    Dielectric Voltage-Withstand
    2.2KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    76 76 76
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-16.0

    makings

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    10.0/2-18
    Stripping Length [mm]
    17-18
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.2*1.2
    PCB Hole Diameter [mm]
    Ø1.7

    dimension drawing

    PCB Opening Diagram
